Mezzanine Floor Load Capacity | What You Need to Know

Key point

The load capacity of a mezzanine floor is the maximum weight per square metre it is designed and certified to support safely. It is expressed in kilogrammes per square metre (kg/m²) or kilonewtons per square metre (kN/m²).

Every mezzanine floor must be structurally designed by a qualified engineer to carry the specific loads it will be subjected to in use, and the load rating must be included in the Building Regulations application. Using a mezzanine floor beyond its certified load capacity is unsafe, unlawful and invalidates the structure’s insurance.

Load capacity is the most technically important specification decision in a mezzanine floor project. Get it right and you have a structure that is safe, efficient and will perform for decades. Get it wrong in either direction and you either have a structure that is dangerous or one that has been significantly over-engineered and cost more than it needed to.

Western Industrial has been calculating and specifying mezzanine floor load capacities for over 45 years, for storage, warehouse, office, industrial, retail and factory applications. This guide explains what load capacity means, how it is calculated, what the standard ratings are for different types of use, and how dynamic and point loads affect the structural specification.

To discuss the load capacity requirements for your mezzanine project, contact us for a free site survey.

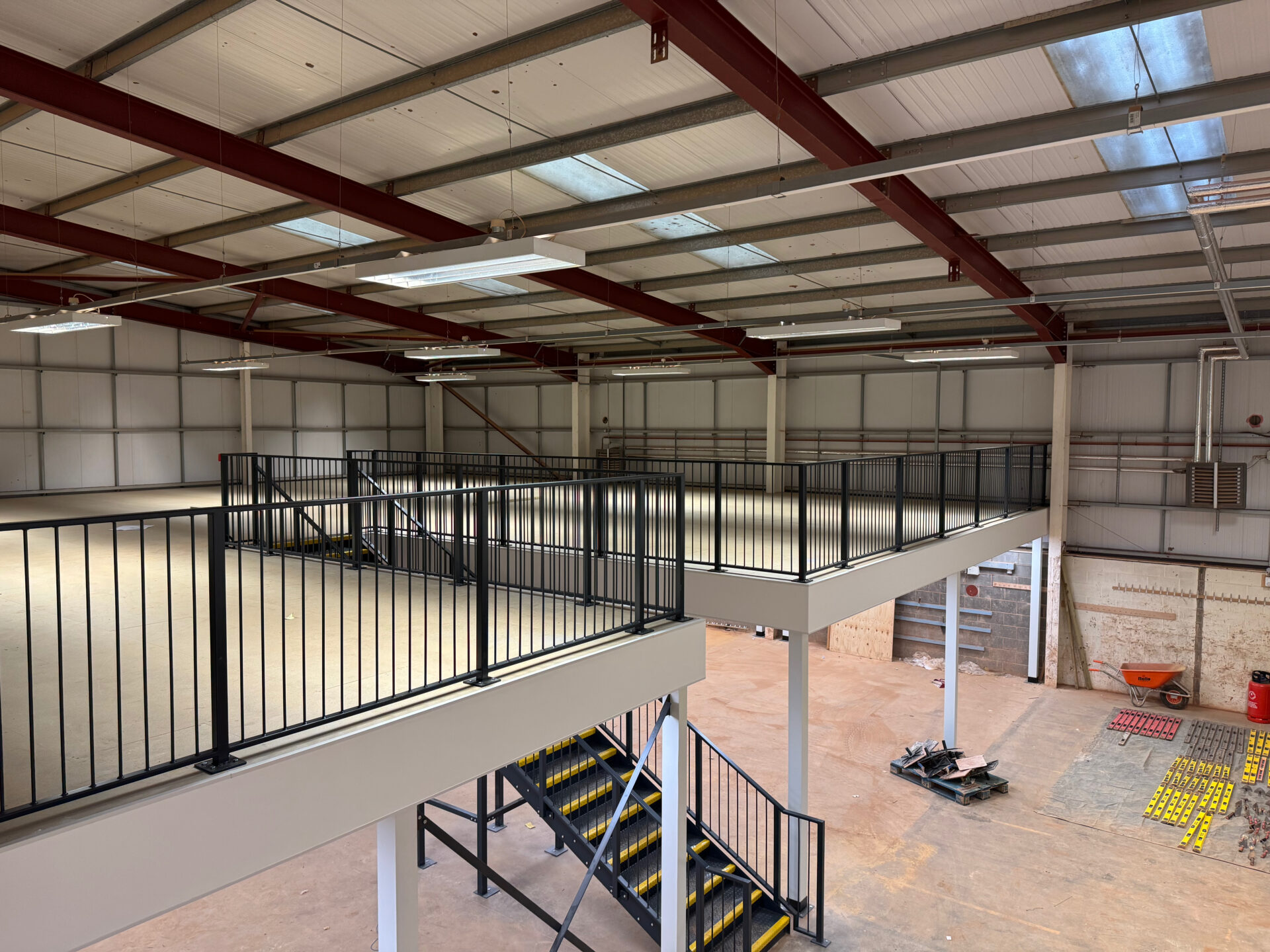

What is mezzanine floor load capacity?

Load capacity is the total weight per unit area that a mezzanine floor structure has been designed and certified to support. It is expressed as a uniform distributed load (UDL), meaning the load is assumed to be spread evenly across the entire floor area. The unit of measurement is kilograms per square metre (kg/m²) or kilonewtons per square metre (kN/m²), where 1 kN/m² is approximately equal to 102 kg/m².

Load capacity is calculated from the sum of two types of load: dead loads and live loads (also called imposed loads).

Read our guide on mezzanine floor design and capacity here

Dead loads

Dead loads are the permanent, static weights that form part of the mezzanine structure itself. They include the weight of the steel columns, beams and joists, the deck boards, any fire-rated ceiling installed beneath the deck, column casings, balustrade posts and any other fixed components. Dead loads do not change over time.

Live loads (imposed loads)

Live loads are the variable, changeable weights placed on the mezzanine after it has been built. They include people, furniture, equipment, machinery, storage goods, racking and any other movable items placed on the upper level. Live loads are the primary specification variable, because they determine what the mezzanine can be used for and at what intensity.

The live load specification must reflect the actual intended use of the mezzanine, not a conservative guess or a default standard. A mezzanine used as an office with desk-based work has very different live load requirements from a mezzanine used for pallet storage or production machinery.

Standard load ratings by mezzanine use type

The following load ratings are standard industry specifications for the most common mezzanine use types. These ratings refer to the live load only, the uniform distributed load the floor is designed to support in use.

These are standard starting points, not fixed values. The appropriate load rating for your project must be confirmed by a structural engineer based on the actual loads you plan to place on the mezzanine. Over-specifying adds unnecessary cost. Under-specifying creates a safety risk and is a legal liability.

Dynamic loads: why static ratings are not the whole story

The load ratings in the table above are uniform distributed loads, meaning they represent a static weight spread evenly across the floor. In operational environments, this is not the only load type the mezzanine structure must handle.

Dynamic loads occur when forces vary over time or are applied suddenly, and they can be significantly larger than the equivalent static load.

Forklift and vehicle loads

Where forklifts, pallet trucks or other wheeled equipment operate on a mezzanine, the loads they impose are dynamic. A loaded forklift braking to a stop applies a much greater momentary load to the floor than the same vehicle standing still. A dynamic amplification factor, typically between 1.25 and 2.0 depending on the vehicle speed and floor profile, is applied to the static vehicle weight in the structural calculation to account for this effect.

Forklifts also impose concentrated loads through their wheels rather than distributed loads across the floor area. The structural design must ensure that the beams and decking directly under the wheel paths can resist these concentrated dynamic loads without local failure.

Machinery vibration

Production machinery, compressors, presses, rotating equipment and CNC machines generate cyclical forces through vibration. These can cause resonance effects in the mezzanine structure if not properly accounted for in the design.

Where machinery with significant vibration is to be installed on a mezzanine, anti-vibration mounts are typically specified to attenuate the transmission of forces through the structure, and the structural natural frequency is assessed to ensure it does not coincide with the machinery operating frequency.

Impact loads at pallet gates

The pallet gate edge of a mezzanine receives impact loads as pallets are deposited and retrieved. The structural design of the edge beam and the pallet gate posts must account for the incidental contact loads generated by forklift operations at this point, in addition to the static load of the pallet itself.

Point loads: racking uprights and machine feet

A uniform distributed load assumes weight is spread evenly across the floor area. In practice, concentrated loads occur wherever a racking upright or machine foot contacts the floor. These point loads can be very much greater than the surrounding distributed load and must be calculated separately.

A typical pallet racking system with a full bay of pallets might impose a point load of 15 to 30 kN through each upright foot, depending on the rack height and pallet weights. If this load is applied directly to a point between structural beams in the mezzanine deck, the deck boards and secondary joists must be designed to span this load to the nearest primary beam without failure.

When Western Industrial designs a mezzanine for a racking or machinery installation, the specific racking layout or machinery positions are incorporated into the structural design. The column grid is positioned to ensure that point loads from racking uprights or machine feet fall at or near the structural beam positions rather than mid-span between them. This is a critical coordination task that must be completed at the design stage, not resolved after the mezzanine is installed.

How load capacity affects the structure and cost

The load rating is the primary driver of the structural specification, the steelwork weight and, therefore, the project cost.

Here is how each component changes as load capacity increases.

Beam sections

Higher live loads require larger beam sections. Primary beams on a 480 kg/m² mezzanine will typically be significantly smaller in section size than those on a 720 kg/m² equivalent. Larger sections mean more steel weight per metre, which increases material cost and, to a lesser degree, installation time.

Column spacing

As the load increases, the span between columns may need to decrease to keep beam sizes within practical limits. A tighter column grid means more columns, more base plates and more connections. It also means more constraints on the ground floor layout below, which must be discussed with the client at the design stage.

Deck specification

The deck boards or steel plate forming the walking surface must also be specified to carry the design loads. Standard P5 chipboard at 18mm is adequate for office and light storage applications. Heavier storage and industrial applications may require 22mm or 25mm P5 chipboard, structural plywood, or steel chequer plate for the highest load ratings and wet environments.

Connection design

The connections between beams and columns, and between primary and secondary beams, must also be designed to transfer the loads in the structural frame. Higher load ratings mean more heavily loaded connections, larger bolts or welds, and more substantial connection plates. The connection design is as important as the member sizing in ensuring the overall structural integrity of the mezzanine.

This is one of the most common questions we receive from businesses whose operations have changed since their mezzanine was installed. The short answer is: sometimes, with proper assessment.

If the intended new use would impose loads greater than the mezzanine was designed for, the structure cannot simply be used at the higher load without assessment. Using a mezzanine beyond its certified load rating is unsafe and unlawful. The following steps are required.

• Commission a structural assessment by a qualified engineer, reviewing the original design calculations and the actual installed structure.
• Determine whether the existing structure has any capacity reserve above its design load that could accommodate the intended increase.
• If the structure has insufficient reserve, identify which elements (beams, columns, deck, connections) limit the capacity and whether they can be strengthened or supplemented.
• Submit a new Building Regulations application for the modification if the structure is to be altered.

In some cases, the existing structure has been conservatively designed and has sufficient reserve capacity to accommodate a modest load increase without modification. In others, adding intermediate support beams or replacing deck boards is a practical and economical way to achieve an uprating. In extreme cases, a full replacement is the most practical solution.

Never increase the operational loading on a mezzanine floor without prior structural assessment. If you are unsure what load your existing mezzanine is rated for, contact us and we can arrange an inspection and review of the original design documentation.

A consideration that is sometimes overlooked in mezzanine floor planning is the capacity of the existing ground floor slab to accept the column loads from the mezzanine structure. Each column transfers the combined dead and live loads of the mezzanine, plus any dynamic and point loads, through a base plate into the slab below.

For most commercial and industrial buildings with standard reinforced concrete ground slabs, this is not a problem. However, in older buildings with thinner or unreinforced slabs, or in buildings with underfloor services or voids, the slab capacity must be checked. Western Industrial’s structural engineers include a ground floor slab assessment as part of every mezzanine structural design, identifying whether the slab can accept the column loads or whether ground improvement, load spreading base plates or additional foundations are required.

This is a detail that is much easier and less expensive to address at the design stage than to discover during or after installation.
